Isometrics

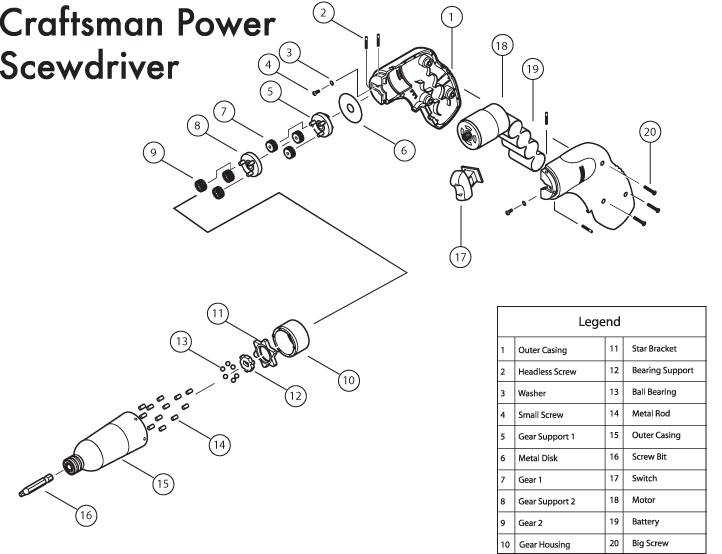

A class project to deconstruct an electric tool and draw it in isometrics.
I believe this was a little Black and Decker drill that I sacrificed. The challenge was to take an appliance apart, and in Illustrator, draw the individual components in the order that they were to be assembled.
As this was a black and white assignement for line work, special attention was paid to line weight as well as shape.
